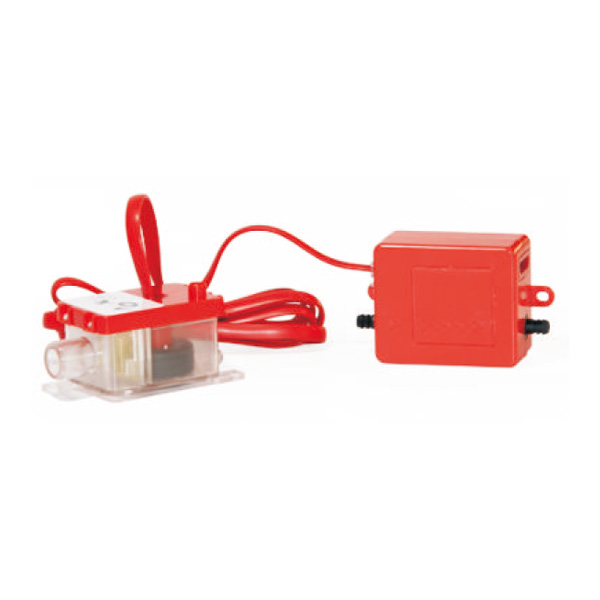

Condensate Water Pump (MB-15LH)
Condensate Water Pump (MB-15LH)

Condensate Water Pump (MB-15LH)

The mini box is a very compact pump that we have introduced, a variety of installation methods, simple and practical, ultra-quiet working mode gives a very comfortable feeling.

Model : MB-15LH
Max. flow : 15L/h @ 0 head
Max. rec.head : 12m
Sound level: <19dB(A) @ 1m

•Power supply: 230V AC 50/60Hz
•Max. flow: 15L/h @ 0 head
•Sound level: >19dB(A) @1 m
•Max. recommended head: 12m
•Max. suction lift: 12m
•Max. unit output: 16kw/54600 Btu/h
•Safety switch: 3A Normally closed
•Max. water temperature:40℃
•Tank capacity: 40ml
•Discharge tube: 6mmID
•Class: Ⅱ appliance
•Rated: Non Continuous
•IP Protection: IPX1
•Thermal protection:
•Fully potted:
•L x W x H: 92mm x 52mm x 32mm
